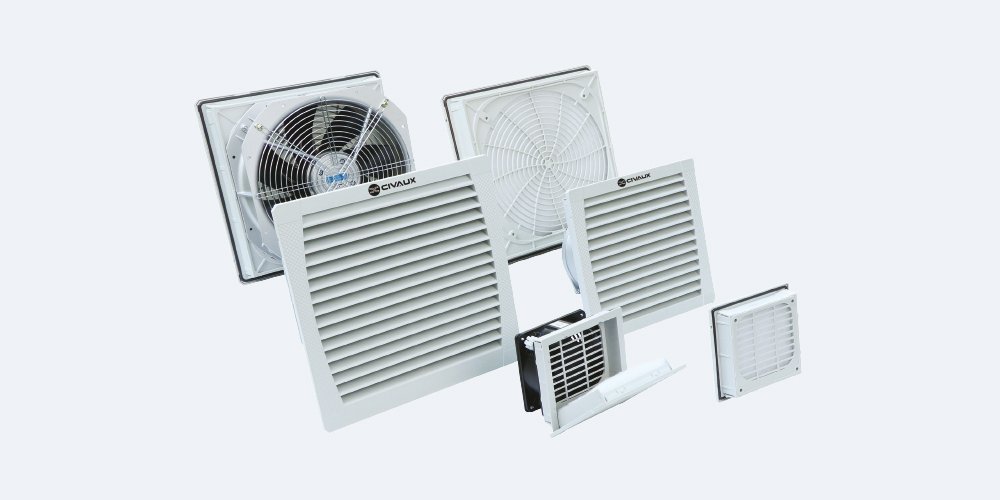

Civaux panel Fan & Filters
Civaux latest Ultra-Thin design Fan Filter equipped with IP 55 protection using Polyurethane Foam gasket on the back and with Clip Mounting System it is easy to install on the cabinet by snapping the whole filter onto the pre-cut hole. The Filter Mat can also change very conveniently when required.
Panel fan and filters details
| Supply includes | Complete unit ready to install, including IP55 filter mat |
| Installation | Quick-fit technology enables fan filter unit to snap into prepared mounting cutouts to eliminate the need for any tools |
| Airflow direction | Detach the fan from the filter and reversing the fan to change the airflow direction |
| Fan Frame Material | Aluminum alloy die-casting |
| Fan Frame Finishing | Black, anti-corrosion treatment |
| Impeller | Plastic PBT, Black |
| Bearing type | Ball |
| Operating/Storage temperature | -30°C to +60°C |
| Operating/Storage humidity | 0% to 95% |
| Available colours | RAL7035 / RAL7032 |
| Available Sizes | 110 x 110 mm, 150 x 150 mm, 200 x 200 mm, 250 x 250 mm, 320 x 320 mm |

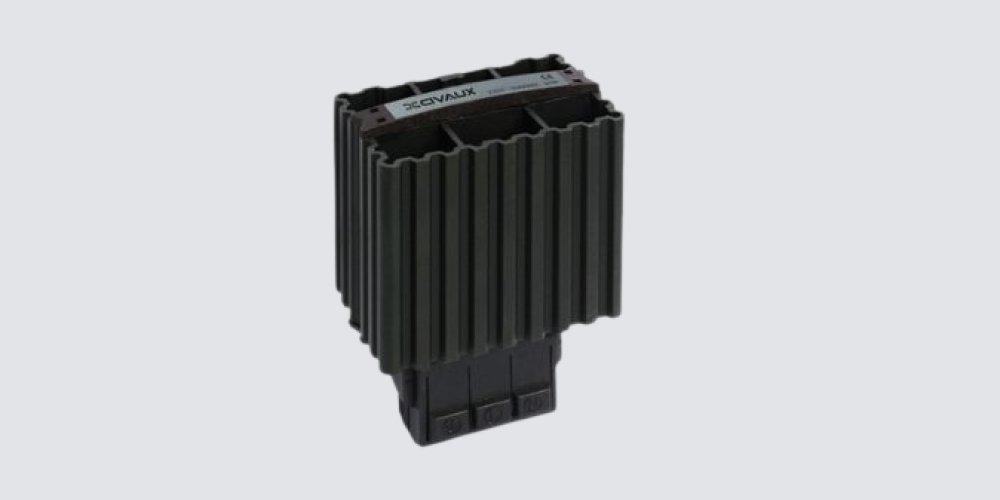

Civaux panel Heaters
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminum profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamp connectors save time and simplify installation.
- Pressure clamp connectors
- Dynamic heating up
- Wide voltage range
- Energy saving
- Clip fixing & Quick installation
Details
| Operating voltage | 120 – 240 V AC/DC (min. 110 V, max. 265 V) |
| Heating Power | 15 W, 25 W, 30 W, 50 W, 60 W, 75 W, 100 W, 150 W. |
| Maximum allowable current | 3 A |
| Heating element | PTC resistor - temperature limiting |
| Heater body | extruded aluminum profile, anodized |
| Connection casing | Plastic according to UL94 V-0, black |
| Mounting | Clip for 35 mm DIN rail, EN 60715 |
| Fitting position | Vertical airflow (air outlet up, connection on bottom) |
| Operating/Storage temperature | -45°C to +70°C |
| Operating/Storage humidity | max. 90 % RH (non-condensing) |
| Protection type / Protection class | IP20 / I (earthed) |

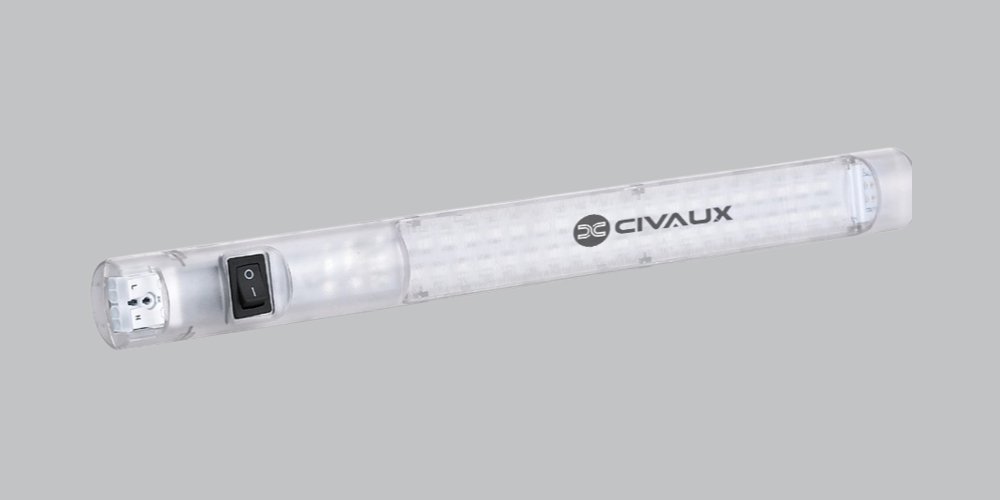

Civaux cabinet LED lamp
The lamp series LED CCL5 is suitable for all types of panels and enclosures, especially where space is at a premium. The lamps have a very long service life thanks to the use of LED technology. Three different fixing options provide more flexibility for installation. The power output allows up to 10 lamps to be connected to each other (12VDC versions up to 5 lamps). Both the power input output connectors snap lock into their sockets. With the integrated power unit and the plugs, the lamp can quickly be connected.
- Wide voltage range
- Integrated power unit
- Long-lived and maintenance-free by LED technology
- Inbuilt On / Off switch
- Magnet, screw

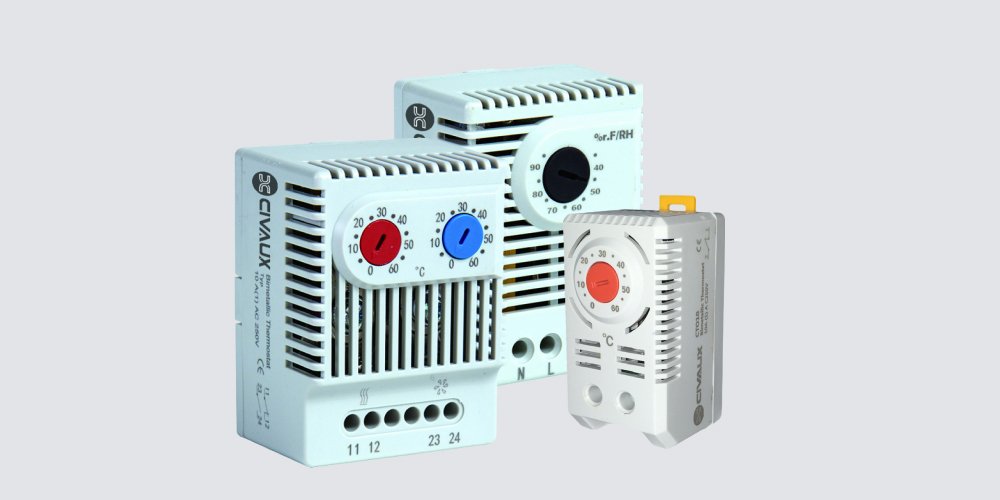

Civaux Regulators
Thermostats are used to regulate heat in the Enclosure. The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change . This can lead to a voltage drop and/or self-heating of the contacts.
Thermostat for Cooling (NO) / Heating (NC)
- Large setting range
- Simple to mount
- Small Size
- High switching performance
Thermostat Dual
- NO and NC in one casing
- Separate adjustable temperatures
- High switching capacity
- Terminals easily accessible
- Clip fixing
Hygrostat & Hygrotherm
- Temperature & Humidity adjustable
- Wide voltage range
- Operating temperature down to -40 degree Celsius
- Status indicator (LED)
- High Switching capacity

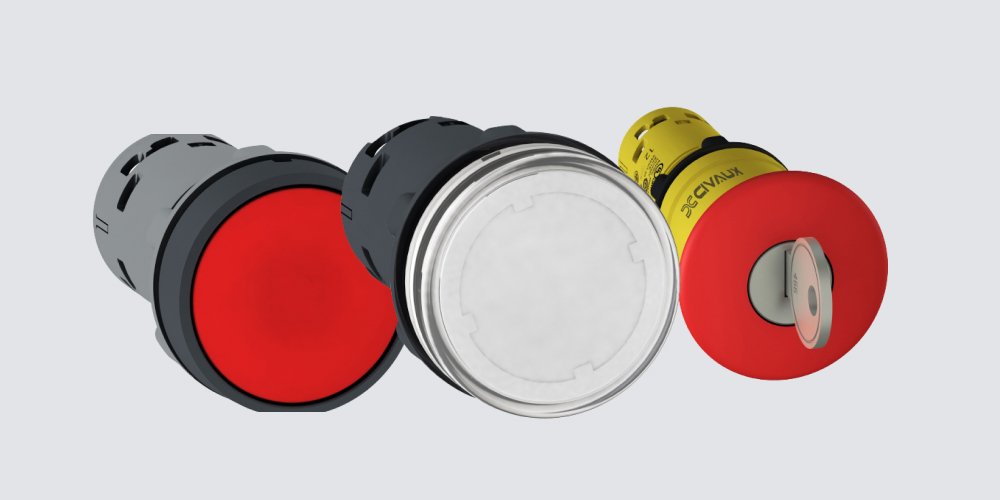

Indication lamp & switch
LED Pilot Light
Civaux CX9 is a professional range of Roundhead pilot lights fitted with an integral LED and a choice of colors and operating voltages
Push Button Switch
Civaux CX9 range of plastic Roundhead control and signaling units are designed for Start/Stop control of machines and installations with choice of colors.
Emergency Stop Mushroom Head Pushbutton
Civaux CX9 range of plastic Roundhead control and signaling units are designed for Start/Stop control of machines
