Civaux Indication lamp & switches
Civaux indication lamp & switches details
LED Pilot light
| Range of product | Cx9 Series |
| Product or component type | Pilot Light |
| Mounting diameter | 22 MM |
| Shape of signaling unit head | Round |
| Cap/Operator or lens colour | RED, YELLOW, BLUE, GREEN, WHTE, ORANGE |
| Light source | LED |
| Bulb base | Integral LED |
| Rated supply voltageRated supply voltage | 230...240 V AC & 24 V AC; 50/60 Hz |
Gallery

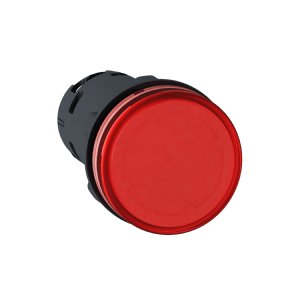

Civaux LED-Red

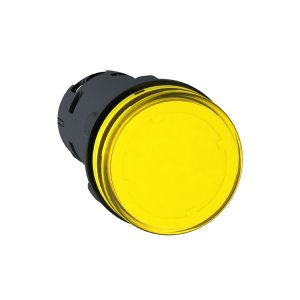

Civaux LED-Yellow
Civaux LED-White
Civaux LED-Blue

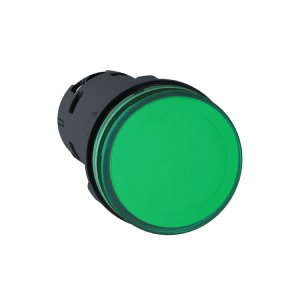

Civaux LED-Green

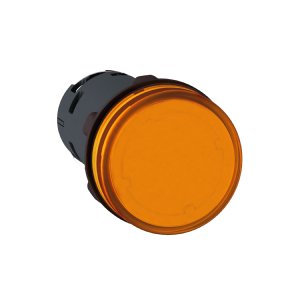

Civaux LED-Orange
Push Button Switch
| Range of product | Cx9 Series |
| Product or component type | Pilot Light |
| Mounting diameter | 22 MM |
| Shape of signaling unit head | Round |
| Operator colour | White, Black, Green, Red, Blue, Yellow |
| Type of operator | Spring Return |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529 |
| Contacts type and composition | 1 NO + 1 NC |
Gallery
Civaux Push button-Red
Civaux Push button-Yellow

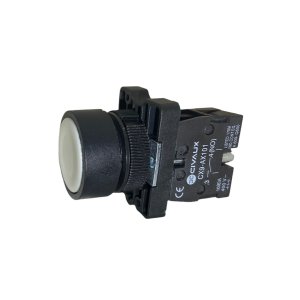

Civaux Push button-White

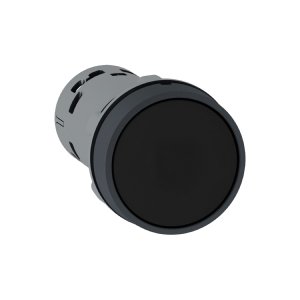

Civaux Push button-Black

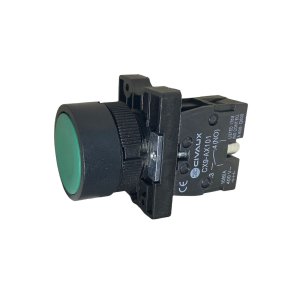

Civaux Push button-Green

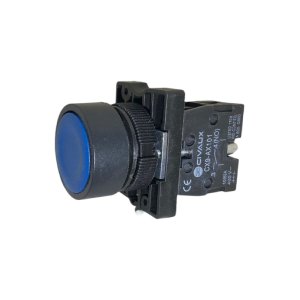

Civaux Push button-Blue
Emergency stop Mushroom head Push button
| Range of product | Cx9 Series |
| Product or component type | Pilot Light |
| Mounting diameter | 22 MM |
| Shape of signaling unit head | Round |
| Operator colour | Red mushroom Ø 40 mm |
| Reset | Turn to release |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 , IP65 (front face) conforming to IEC 60529 |
| Contacts type and composition | 1 NC |
Gallery

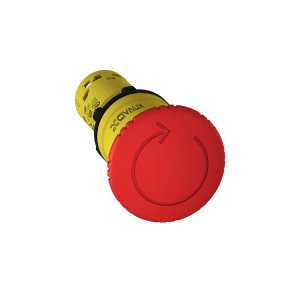

Civaux Emergency Push button

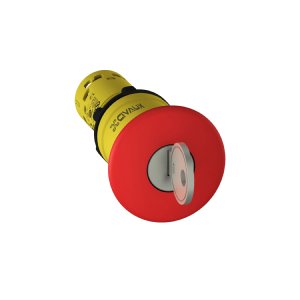

Civaux Emergency Key
Selector switch (2 & 3 Position)
| Range of product | Cx9 Series |
| Product or component type | Pilot Light |
| Mounting diameter | 22 MM |
| Shape of signaling unit head | Round |
| Operator colour | Black handle |
| Type of operator | Stay put |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 , IP65 (front face) conforming to IEC 60529 |
| Contacts type and composition | 1 NO + 1 NC |
Gallery

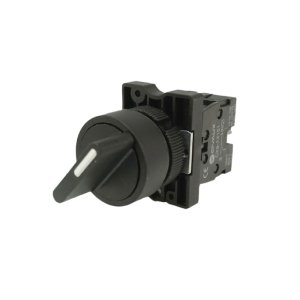

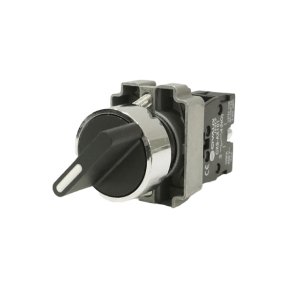

Civaux Selector switch-1
